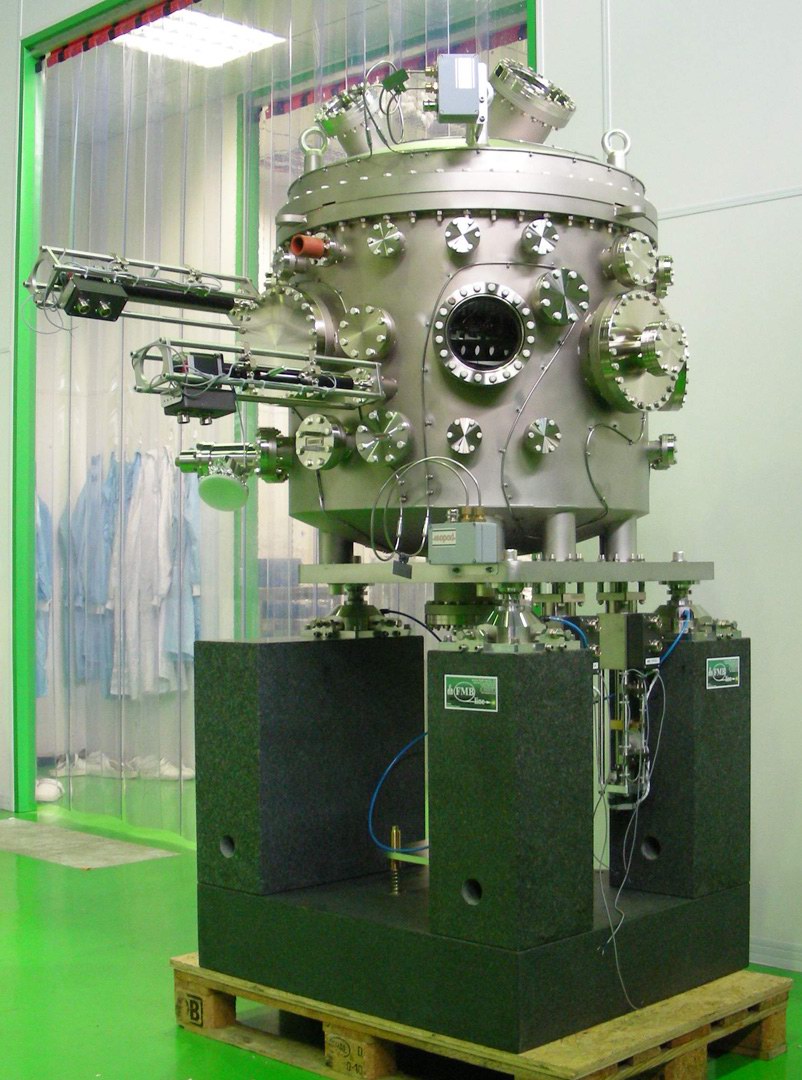

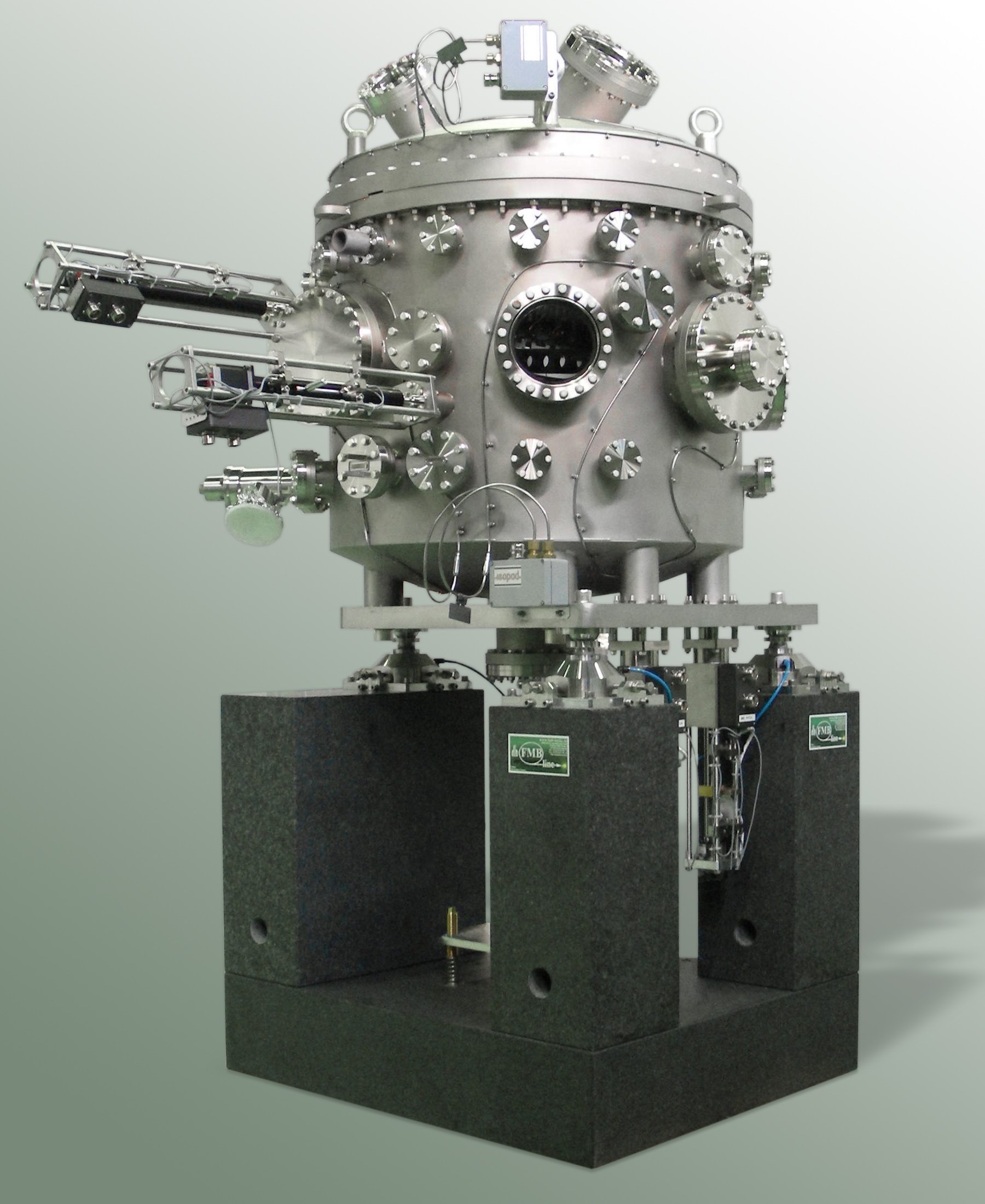

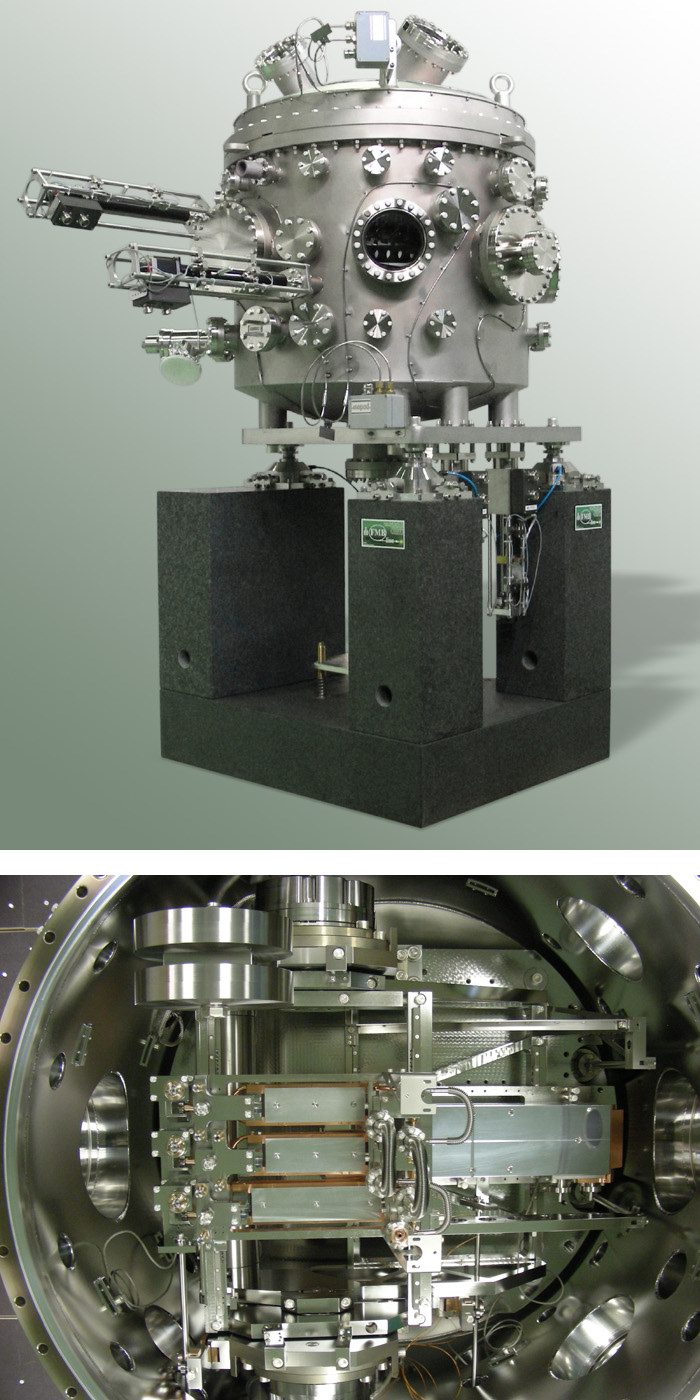

REIXS Monochromator
Technical Description:
Plane Grating Monochromator for Resonant Elastic and Inelastic X–ray Scattering Beamline
Technical Data:
| Energy range: | 80 - 2000 eV | |
| Resolution: | ≤0,02 arcsec | |
| Pitch angle of the gratings: | -1⁰ - 11⁰ | |
| Max. number of gratings: | 3 | |
| Max. grating size: (length x width) |
130x30, 170 x 30 | |
| grating cooling: | Indirect Water side cooling | |
| Max. grating size: (length x width) |
410x100 | |
| Mirror cooling: | Intrinsic Water Cooling | |
| Grating and mirror pitch drive & Grating and mirror change drive |
Stepper motors with gears in air | |
| Angular encoder: | Heidenhain RON 905 UHV type | |
| Linear encoder: | Renishaw UHV type | |
| Base pressure: | < 5 x 10e-10 mbar |
Customer & Period:
| Customer: |
Canadian Light Source – CLS | |
| Period of Implementation: |
November 2006 to August 2007 |
